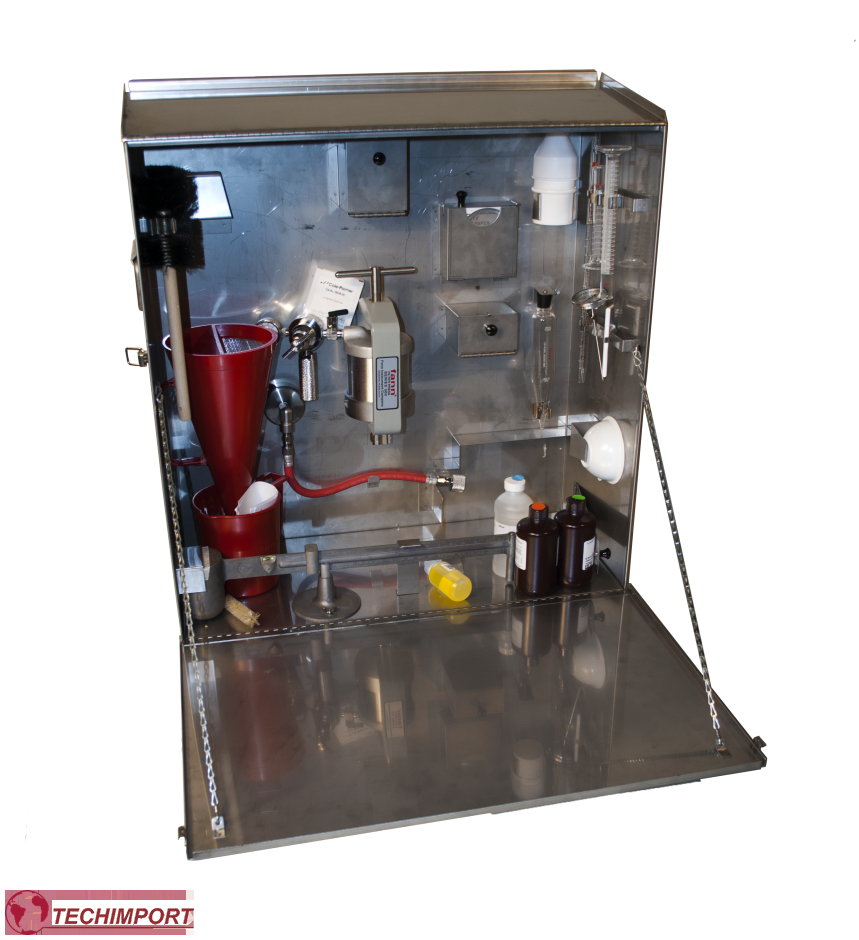

Rig Lab Model 821 contains the basic mud testing equipment required for routine mud checks by rig personnel. The Stainless Steel cabinet is designed for long life and easy maintenance.
The Series 821 Rig Laboratory is designed to give the drilling fluid engineer convenient access to all testing equipment, and the cabinet and equipment are built for long life and easy maintenance under field conditions.
Part No. 210378 Rig Lab Model 821
Part No. 210379 Rig Lab Model 821H with Dead-weight Hydraulic Unit instead of the CO2 Pressuring Assembly
Part No. 210382 Rig Lab Model 821S (with a built-in sink and water connections, larger)
Model 821 includes:
205809 STOPPER #2 RUBBER w/1 HOLE
205852 BRUSH LARGE 2 -1/2in. DIA X 12in.
205854 BRUSH SMALL 3/4 X 3 -1/2 X 9in.
205868 CYLINDER GRADUATED GLASS 25ml TC
205869 CYLINDER GRADUATED GLASS 10ml TC
205902 DISH TITRATION PLASTIC 140ml
206026 PIPETTE 1 ml SEROLOGICAL
206029 PIPETTE 10ml SEROLOGICAL
206031 ROD STIRRING 4in. PLASTIC
206036 TIMER 2 - HOUR
206038 THERMOMETER DIAL 50 - 350 DEG F 5in. STEM
207503 FILTER PRESS API - WALL MOUNT
No. 308 206051 FILTER PAPER API 3.5in DIA (9cm) 100/BOX
206769 MUD BALANCE MODEL 14001 without CASE
206884 FUNNEL VISCOSITY MARSH PLASTIC
No.201 206889 MEASURING CUP, 1000ml PLASTIC
No. 202 206898 STOPWATCH DIGITAL ELECTRONIC
208613 ADAPTER RIG AIR
209663 TUBE SAND CONTENT 100ml GLASS
209850 POTASSIUM CHROMATE INDICATOR 2oz
209910 SILVER NITRATE SOLUTION .0282N 8oz
209916 SILVER NITRATE SOLUTION .282N 8oz
209944 WATER DISTILLED 8oz
210053 pH PAPER DISPENSER 2 ROLL pH 2 -10 & 1-1
210060 pH PAPER DSPENSER 2 ROLL pH10 - 12&12.5 - 1
210387 INSTRUCTION RIG LAB MODEL 821
206031 ROD STIRRING 4in. PLASTIC
209662 FUNNEL, SAND CONTENT KIT
209661 SCREEN, PLASTIC SAND CONTENT
