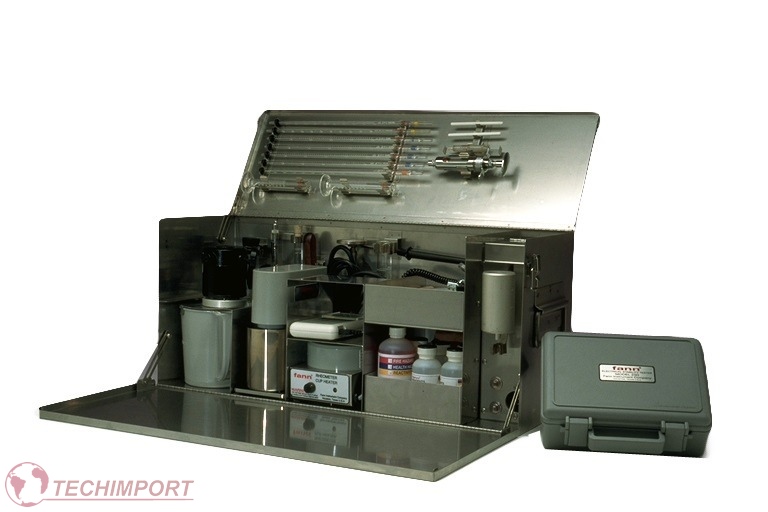

The Fann Oil Mud Test Kit is designed as a compliment to the Basic Mud Testing Kit by providing all necessary drilling fluid testing equipment required for field testing of oil based drilling fluids according to API Recommended Practice 13B - 2. All testing apparatus and reagents are contained in a specially designed stainless steel case.
Mud Test Kit - Oil Mud Kit Model 866 includes:
210154 ANILINE REAGENT GRADE 2oz
209957 AQUATONE-S SOLUTION 8 oz
209951 BARA KLEAN 8oz
205852 BRUSH LARGE 2-1/2in. DIA X 12in.
205853 BRUSH MEDIUM 1-1/2in. X 10-3/4in.
210071 BULB RUBBER SUCTION f/653 SAMPLE CELL
210408 CASE OIL MUD TEST KIT STAINLESS STEEL
206681 CLAMP FIBERGLASS UTILITY
205864 CLAMP TEST TUBE
210441 CLEANER PIPE 5mm 20/PKG
205729 CLIP FLASK
205727 CLIP FUSE PIPETTE
205728 CLIP LARGE
205726 CLIP MEDIUM
205725 CLIP SMALL
210439 CORKSCREW
206961 CUP-HEATER RHEOMETER 115 VOLT
205869 CYLINDER GRADUATED GLASS 10ml TC
205867 CYLINDER GRADUATED GLASS 50ml TD
205902 DISH TITRATION PLASTIC 140ml
209058 ELECTRICAL STABILITY TESTER MODEL 23D
205914 FLASK ERLENMEYER GLASS 250ml
207969 GROMMET VINYL 1/4in. ID X 9/16in. OD
204216 INSTRUCTION ANILINE POINT DETERMINATION
209802 INSTRUCTION WATER & FILTRATE KIT
210398 KIT RETORT 10ml REMOVABLE 115 VAC/12 VDC
210435 LUBRICANT HIGH TEMPERATURE
205986 MIXER 115V AC-DC w/CLIP & CUP No. 202
206889 MUD CUP, MEASURING 1000ml PLASTIC - RED
209954 NORMAL PROPOXY PROPANOL 8oz
209855 PHENOLPHTHALEIN INDICATOR 2oz
206026 PIPETTE 1 ml SEROLOGICAL
206029 PIPETTE 10ml SEROLOGICAL
206028 PIPETTE 5 ml SEROLOGICAL
210070 PIPETTE DROPPER 1 ml
209850 POTASSIUM CHROMATE INDICATOR 2oz
206984 RHEOMETER HAND-CRANK MODEL 280
206031 ROD STIRRING 4in. PLASTIC
209906 SODIUM HYDROXIDE N/10 4oz
206033 SPATULA 6in. STAINLESS BLADE
210433 SPATULA RETORT
210440 STEEL WOOL 1/4 POUND PACKAGE
205290 STOPPER #6 RUBBER
210153 STOPPER NO 4 CORK
209871 SULFURIC ACID N/10 4oz
205896 SYRINGE 10cc VETERINARY
205891 SYRINGE 2cc GLASS TIP
206568 THERMOMETER 0-220 DEG F POCKET
206038 THERMOMETER DIAL 50-350 DEG F 5in. STEM
206044 THERMOMETER DIGITAL w/PROBE
209922 TITRATION SOLUTION S.N. .282N 4oz
205234 TUBE TEST 16 X 125mm
209821 VERSENATE HARDNESS INDICATOR 2oz
209822 VERSNATE HARDNESS BUFFER 2oz
209828 VERSNATE HRDNS TITRANT 400mg/L EDTA 4oz
209943 WATER DISTILLED 4oz
209938 WETTING AGENT 1oz
Dimensions 26* 9* 12 inches
Weight 55 pounds
