Retort Oil and Water Kit 10ml and 50ml Model 871

The Model 871 Oil and Water Retort Kit 10ml is used to determine the quantity of liquids and solids in a drilling fluid. In a retort test, a measured sample of fluid is placed in a cup and heated until the liquid components have been vaporized. The vapors are passed through a condenser and collected in a graduated cylinder or centrifuge tube that has been calibrated to record the volume of the condensed liquids at 20°C. The distillate is read directly as volume percent of the solids sample's original volume. Suspended and dissolved solids are determined by subtracting these from 100 percent of the initial sample. For fresh-water fluids, the relative amount of barite and clay can be estimated. Corrections must be made for salt in the calculation for solids content by volume.

The Oil and Water Retort provides a simple, direct field method for determining the percent by volume of oil and water in samples in drilling mud or in core samples of the formation. The Retort has been found to be especially useful in determining the oil content of emulsion muds. Retorts are available in 115 and 230 volt models.

Ordering Information and Specifications

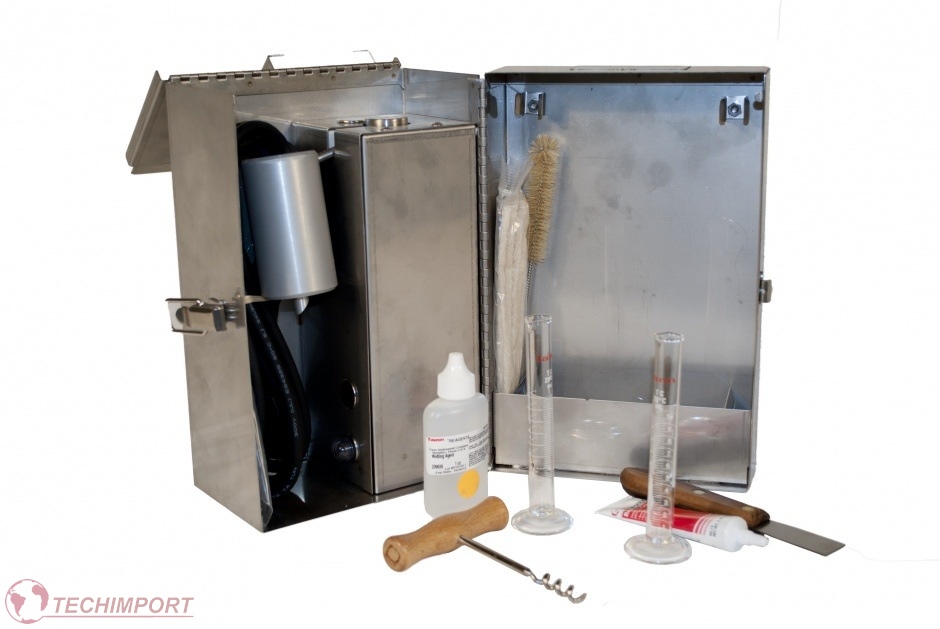

10ml Oil & Water Retort Kit Model 871

Included Parts

210443 KIT RETORT 10ml OIL & WATER 230 VAC
205854 BRUSH SMALL 3/4 X 3-1/2 X 9in.
205850 BRUSH WIRE-ALL STAINLESS STEEL 1/8 DIA
205766 CABLE ASSEMBLY 230 VOLT POWER
210462 CASE f/10ml RETORT STAINLESS STEEL
210441 CLEANER PIPE 5mm 20/PKG
205726 CLIP MEDIUM
204295 CLOSURE SNAP 5/8
210437 CONDENSER 10ml RETORT
205716 CONNECTOR MALE RECESSED WITH G
210439 CORKSCREW
205869 CYLINDER GRADUATED GLASS 10ml TC
206118 DRILL TWIST (#31) 6 IN. LENGTH
210450 HEATER BLOCK RETORT 10ml 115/230 V
205738 HEATER ROD 871 RETORT 350 WATT 230 VOLT
205758 HOLDER LAMP OVEN & RETORT 115 VOLT
210445 INSTRUCTION RETORT KIT 10ml
210459 INSULATION BULK
210451 INSULATOR BLOCK COVER for 10ml RETORT
210453 INSULATOR BLOCK SHELF f/RETORT 871&87101
210452 INSULATOR BLOCK TOP for 10ml RETORT
204495 LABEL 'F' BLANK SPECIFICATION
205759 LAMP NEON OVEN & RETORT 115 VOLT
205757 LENS CLEAR 10ML RETORT 12 VOLT
210435 LUBRICANT HIGH TEMPERATURE 1oz TUBE
210434 RETORT CHAMBER 10ml
210433 SPATULA RETORT
210440 STEEL WOOL 1/4 POUND PACKAGE
205802 THERMOSTAT 1100 DEG F f/RETORTS
204332 TUBE HEAT SHRINK 3/16 DIA BLK
209938 WETTING AGENT 1oz
206119 WRENCH TAP T-HANDLE

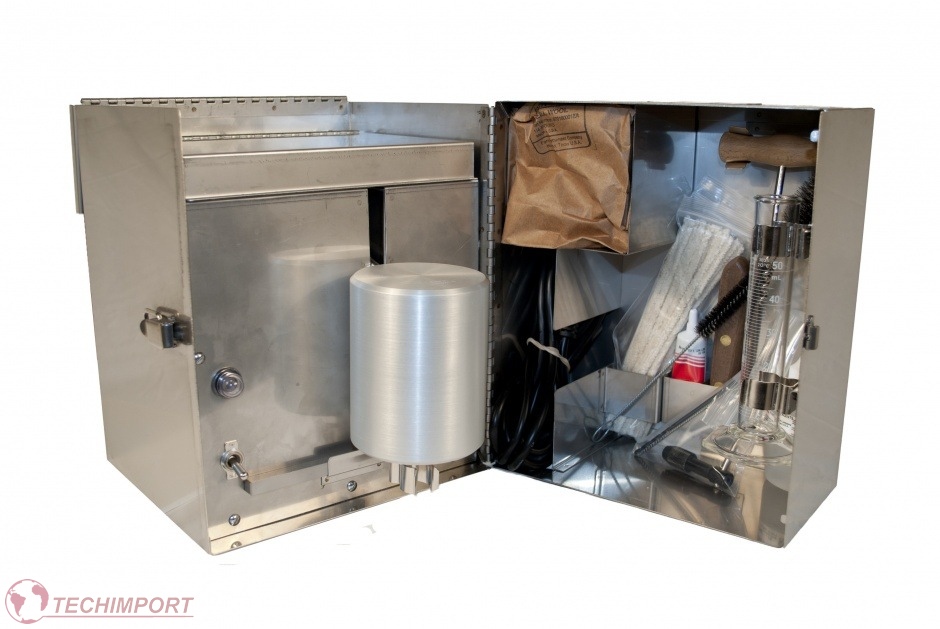

Retort Oil and Water 50ml Kit

Retort Oil and Water 50ml Kit The API recommends using a 50ml Retortto measure the amount of oil from cuttings generated during a drilling operation. The  retort  test  measures  all  oil and  water released from a  cuttings sample when heated in a calibrated and properly operating retort instrument.

In a retort test, a measured sample of fluid is placed in a cup and heated until the liquid components have been vaporized. The vapors are passed through a condenser and collected in a graduated cylinder or centrifuge tube that has been calibrated to record the volume of the condensed liquids at 20°C.

Ordering Information

Part No. 210465 Oil & Water Retort Kit, 50ml, 700 Watts, 115 Volt
Part No. 210463 Oil & Water Retort Kit, 50ml, 700 Watts, 230 Volt

Accessories

Part No. 102390678 Cell Lifting Tool
Part No. 102388186 Retort Stand
