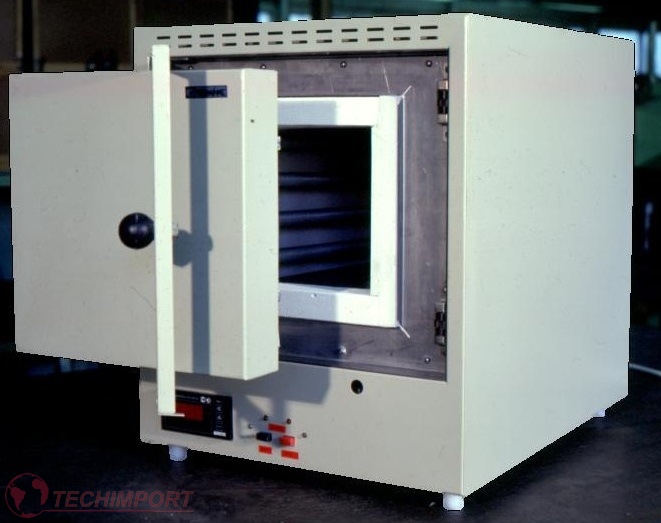

SNOL electric furnaces are made using original high-quality and environmentally friendly insulation materials. They have a high heating rate and temperature recovery in the working closed chamber. This furnaces are compactness and simplicity, exceptional reliability and durability.

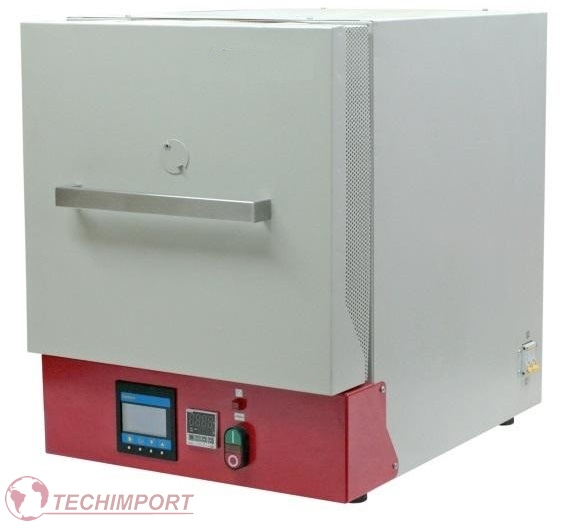

The modernized design (with enhanced thermal insulation) of the SNOL N-series electric furnaces allows to increase the temperature uniformity inside the working chamber and reduce the temperature of external surfaces. Electric furnaces have a shock-resistant frame of the boot opening and a wide range of additional options.

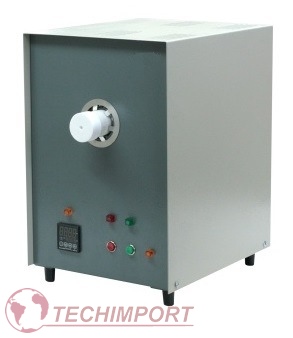

SUOL and SUON tubular electric furnaces are designed to heat small samples. They are very compact and economical. At the same time, a high temperature uniformity is achieved in the working area, especially in the precision three-zone model of the SUON. Can be executed in horizontal and vertical versions.
|
Furnace Model |
SNOL |
SNOL N-series |
SUOL and SUON |
|
Temperature, °C |
1000 / 1100 / 1250 |
1000 / 1100 / 1250 |
1200 / 1250 |
|
Working capacity (dimensions) |
4 / 10 / 16 l |
4 / 10 l |
ᴓ25х100 mm ᴓ30х200 mm ᴓ30х250 mm |
|
Working chamber |
Ceramic muffle |
Ceramic muffle |
Ceramic tube |
|
Heaters |
Open on tubes |
Open on tubes |
Open on tubes |
