The Ultrasonic Cement Analyzer (UCA) provides a non-destructive method for determining the relative strength development of a cement sample under down-hole temperature and pressure conditions. The theory of operation is based on the correlation between ultrasonic pulse velocity in the cement sample and its compressive strength. Strength indications are determined by measuring the change in velocity of an ultrasonic signal transmitted through the cement sample as it cures.

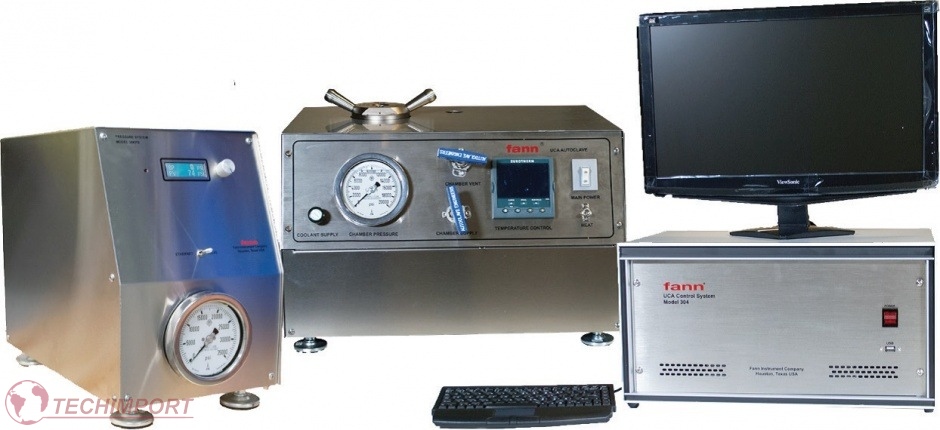

As many as eight cement samples can be analyzed simultaneously, with the addition of autoclave assemblies specifically designed to interface with the Fann Model 304 Processor System. The Processor is the next generation of real-time data acquisition and instrumentation control. This powerful and unique Processor was developed by Fann Instrument Company for the Ultrasonic Cement Analyzer.
Specification
Temperature Range 40°F to 400°F, 4.4°C to 204°C
Pressure Range: 20,000 psig
Pressure Controller 2000 psig to 20,000 psig, 13.8 MPa to 138 MPa
Cup Volume 200 mL
Heating Rate 8°F /min 4.4°C /min
Power 230 VAC, 50/60 Hz, 10 amp
Data Manager Features
• Recalculates data for different cement type or temperature units
• Choice to print or save as .pdf
• Saves data as .txt or .csv file for exporting into spreadsheet or analyzing after test ends
• Option to calculate data for new compressive strength or time events after test ends
• Zoom in or out on graph for detailed view
