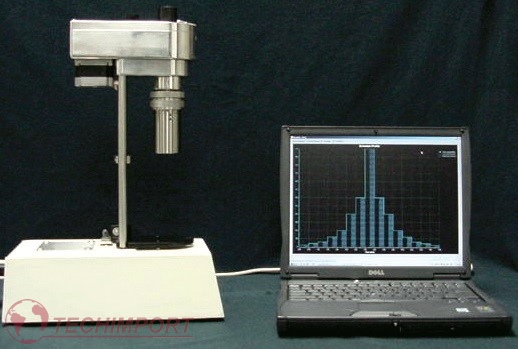

The Model 3530 is a fully automated concentric cylinder viscometer designed to meet API and ISO requirements for viscosity measurements of many of the fluids used in well servicing. This viscometer is fully operational in manual mode without the use of a computer or as a computer controlled viscometer with preconfigured periodic shear rate ramping. The Rheo 3000 Data Acquisition Software is provided with the instrument and provides a powerful tool ensuring consistent testing parameters and results.
Operational Simplicity
The Model 3530 is an automated version of the Model 3500LS+ viscometer combined with our powerful Rheo 3000 Data Acquisition Software running on your computer (Software is an optional/additional feature). This combination provides complete, programmable control of the viscometer's speed throughout a test cycle including step changes, linear ramps and constant speeds as low as 0.01 rpm. Rheo 3000 also provides automatic data acquisition graphical display and analysis of the test results. All test data is stored in a spreadsheet compatible file format for ease of data handling.
Features
Operating Speeds: 16 Manual Speeds from 0.1 to 600 rpm
0.01 to 1000 rpm when computer controlled
Shear Rate (sec-1)**: 0.17 to 1021 with supplied rotor, bob and spring
Shear Rate Accuracy: ±0.01 rpm ±0.017 sec-1
Torque Accuracy: ±0.5 dial reading from 1 to 260 degrees
Sample Temperature: 194ºF / 90ºC Maximum
Sample Volume: 350mL
Operating Conditions: 75ºF - 194ºF / 24ºC - 90ºC
Compliance: System complies with API Spec. 10A requirements
CE and CSA (NRTL) certified
Utilities
Power Requirements: 120 or 240 Volts, 50/60 Hz, 700 W
Physical Dimensions
Dimensions (wxdxh): 7 x 12 x 18.2 in / 18 x 31 x 46 cm
Weight: 47 lb / 21 kg
Shipping Information
Dimensions (wxdxh): 13 x 25 x 20 in / 33 x 64 x 51 cm
Weight: 50 lb / 23 kg
**Additional rotors, bobs and springs available for higher and lower shear rate ranges
