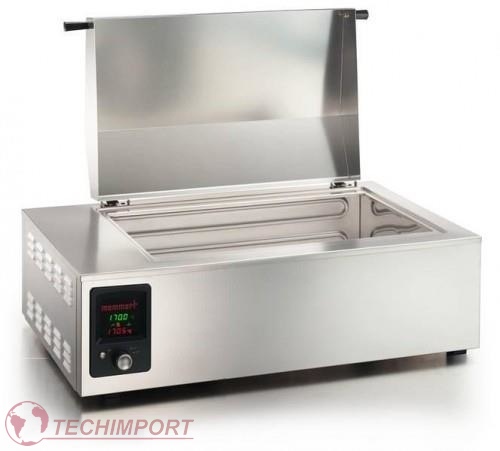

Water Bath Memmert for 7, 10, 14, 22, 29 and 45 liters

Memmert waterbaths are combination of high-grade anti-corrosion stainless steel with the latest electronics, for maximum functional security and decisive advantages in convenience and ease of operation.

  • 6 model sizes (7 to 45 litres volume)
  • temperature range up to +95 °C (with Peltier cooling unit CDP115 from +10 °C)
  • extensive range of accessories: e.g. a Peltier cooling unit, flat or gable cover, shaking device, floor shelf, test tube rack
  • state-of-the-art control technology
  • optional water level control
  • high-quality, corrosion-resistant and easily cleanable stainless steel for the working chamber and housing

B (Basic) version

  • Normal operation
  • Delayed switch-on
  • From 0 to 99:59 hrs (Excellent: 999 hrs) setting accuracy: 1 minute
  • Programmable hold time
  • Visual alarm

E (Excellent) version WNE – WPE – ONE

Excellent versions offer everything included in the Basic versions and in addition still more  convenience and security: start of hold period only after reaching the setpoint, re-calibration  on the controller.

  • Electronic PID controller ensures that the selected temperature is accurately reached and maintained. The multi-functional fuzzy-supported PID control on the  Excellent versions guarantees maximum security.
  • Two high-grade platinum sensors are responsible for temperature control and for monitoring temperature and level. Like a climbing team on a rope they communicate with each other and ensure uninterrupted fault-free temperature control;
  • the high-grade 4-wire circuit guarantees uncorrupted transmission of measurements.
  • Electronic changeable temperature monitor TWW or changeable temperature limiter TWB (selected during setup).
  • Ability to recalibrate the controller.
  • Visual and audible alarms, such as over temperature or end of the program.
  • Temperature curve programming



Model

7

10

14

22

29

45

WNB (Basic) Working-temperature range from +10 оС to + 95 оС, + and additional boiling stage

WNB 7

WNB 10

WNB 14

WNB 22

WNB 29

WNB 45

WNE (Excellent) Working-temperature range from +10 оС to + 95 оС, + and additional boiling stage

WNE 7

WNE 10

WNE 14

WNE 22

WNE 29

WNE 45

WPE (Excellent) with pump, Working-temperature range from +10 оС to + 95 оС, + and additional boiling stage (only with pump switched off)

-

 -

WPE 45

Parameters

Volume, liters

7

10

14

22

29

45

Length / height / width, mm

240 / 210/ 140

350 / 210 / 140

350 / 290 / 140

350 / 290 / 220

590 / 350  140

590 / 350 / 220

Length / height / width, mm with flat cover (with gable   cover), mm

468 / 356 / 238 (337)

578 / 356 / 238 / (337)

578 / 436 / 238 (347)

578 / 436 / 296 (405)

818 / 516 / 238 (343)

818 / 516 / 296 (401)

Weight, kg

11

13

15

16

22

24

Power, kW

1,2

1,2

1,8

2,0

2,4

2,8



Accessories (stainless steel)

- Flat lid for water baths
- Gable cover to drain condensate
- Racks for test tubes
- Portable Stand for baby bottles
- Stirring device
- Baskets holders for flasks
- Clamps for flasks
