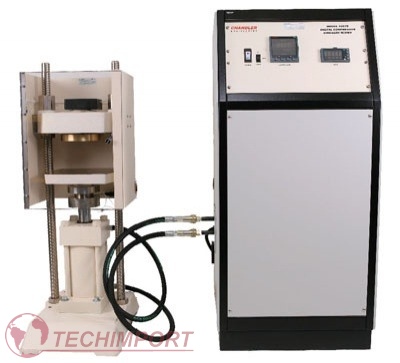

The Model 4207D consists the load frame assembly and a separate electronic control / hydraulic power system. The unit is of a suitable size for laboratory use as a freestanding, floor-mounted instrument. The separation of these two primary components enables installation of the load frame in a safe location away from laboratory personnel. The load frame is equipped with a polycarbonate safety shield and door safety interlock. The Model 4207D is also equipped with an over-temperature safety circuit for the hydraulic oil. The Model 4207D Compressive Strength Tester is simple to operate with all of the operational controls conveniently located on the electronic control unit. For easier control plus automatic data logging, the Model 4207D is compatible with Chandler Engineering Model 5270 Control & Data Acquisition System.
Chandler Engineering also manufactures the slurry mixers and pressurized curing chambers used in the preparation of the standard two-inch cement cubes tested by the Model 4207D.
Features
- Control cabinet is remote from load frame
- Precise, digital control of loading rate and pressure release valves
- Programmable for multi-slope load rates
- Quiet hydraulic motor
- Safety shield with door safety interlock
- Over temperature safety circuit
- Automatic system shut-down
- Compatible with Chandler Engineering Model 5270
- Control & data acquisition system
Specifications
Maximum Load: 50,000 lbf / 222 kN
Maximum loading rate: 40,000 lbf/min. / 178 kN/min
Maximum load dwell: 3 min @ 50,000 lbf / 222 kN initial oil temperature below 75ºF / 24ºC
Hydraulic fluid: SAE 10W30 Synthetic Oil,
Operating temperature 40 to 120ºF / 4 to 49ºC;
Data acquisition Chandler Engineering Model 5270
Data Acquisition and control software for a stand-alone computer (optional)
Utilities
Power supply 200-240 VAC, 50/60 Hz, 900 W
Net dimensions (w x d x h): Load frame: 18 in. x 22 in. x 48 in. / 46 x 56 x 122 cm
Net weight: load frame: 360 lb / 164 kg
Control cabinet: 570 lb / 260 kg
